ABOUT

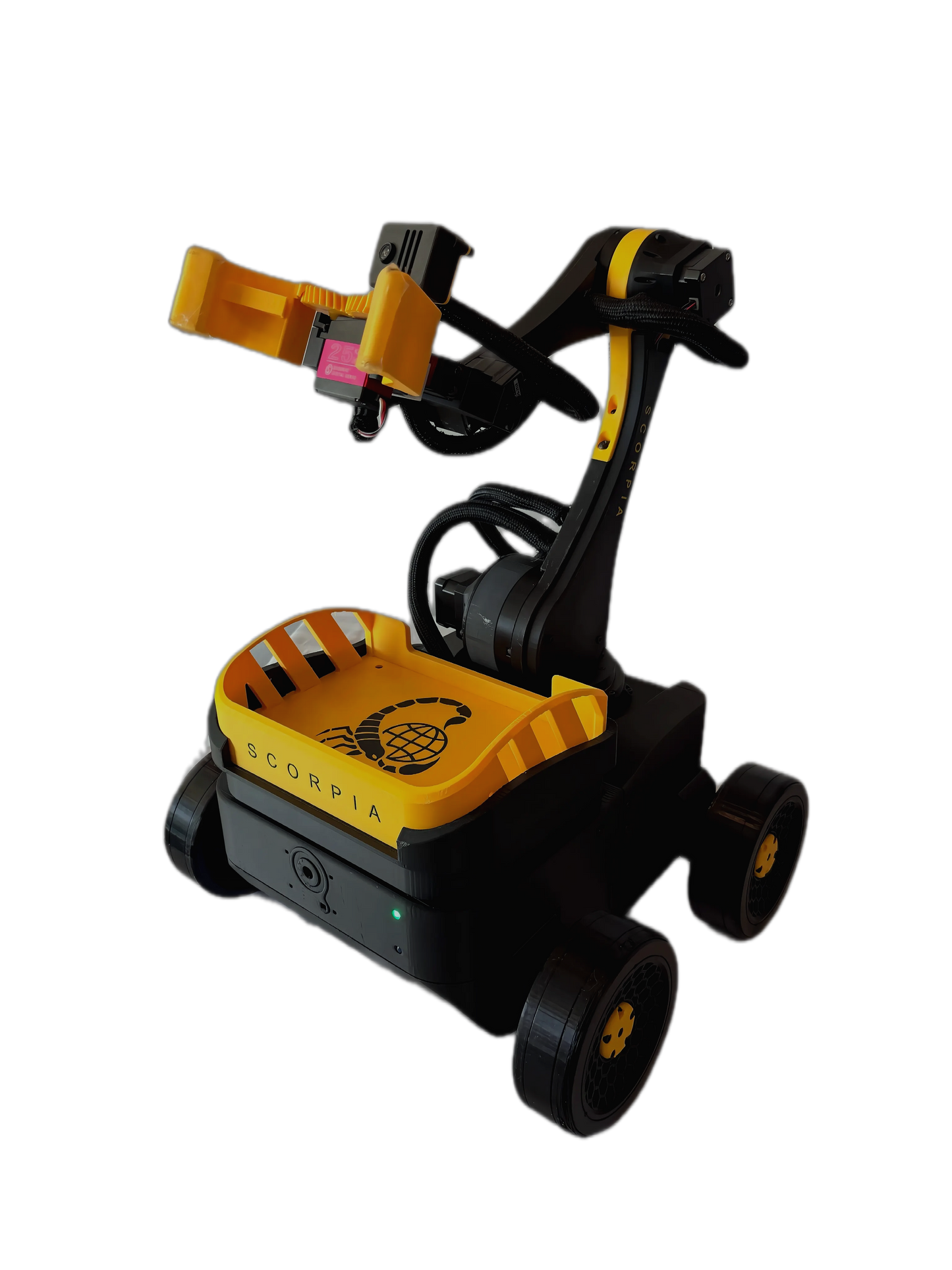

With a rugged mobile platform and an integrated robotic arm, the Scorpia Rover brings mobility and manipulation together in one versatile robotic system.

Whether you’re remotely inspecting an environment, picking up objects around the house, or just learning robotics, the Scorpia Rover gives you the tools to explore and interact with the world around you—all from the palm of your hand.

FEATURES

Rover Cockpit Joystick Experience

Our Scorpia App instantly turns any smartphone or tablet into low-latency joystick controller that allows for intuitive arm and wheel control.

Take The Rover Anywhere

When out of range of known Wi-Fi networks, the Rover creates its own Wi-Fi network so you can seamlessly control the rover through the Scorpia App wherever you might end up.

Arm Sequence Saver

Teach the arm new movement and position sequences without writing a single line of code with our Sequence Saver 1-click interface.

Self-Adjusting Gripper Strength

Automatically adjusts gripping force to help securely handle objects without unnecessary pressure

Integrated Tri-Camera Stream

Provides 3 live video streams for intuitive remote operation and precise arm control

Arm Collision Avoidance & Motor Stall Guards

Built-in logic helps protect the arm from collisions and detects arm motor stalls during operation

Horizontal Wrist Stabilization

Helps keep the gripper level while the arm moves, making it easier to pick up and transport objects

Secure Control From Anywhere

Securely access and operate the rover even when you aren't home! Using Tailscale Secure Device Authentication, you and only you will be able to control your rover from anywhere in the world.

(Note this requires a separate desktop/laptop device on your home wifi network to be connected and running tailscale)

Four Wheel Drive

Four-wheel drive mobility allows the Scorpia Rover to traverse its environment and bring its robotic arm wherever it’s needed.

WHAT'S INCLUDED

Scorpia Rover Kit

• 4-wheel drive rover chassis
• Drive motors and motor controllers
• Rechargeable battery system
• ESP32 rover control system
• Integrated Tri-camera system
• Wiring harness and assembly components
• 3 Stepper Motors (arm)
• 3 Servo Motors (arm)
• 3 Measurement Encoders for precision control-loop feedback
• 12 Volt 7Ah Battery with BMS
• Assembled Printed Circuit Board
• Open-source ESP32 arm controller
• Wall Charger connector

SPECS

• Battery Life: 4 Hours
• Max Arm Payload: 2.2 lbs (1 kg)
• Max Arm Reach: 1.7 feet (0.52 meters)
• Max Rover Speed: 3 MPH
• Arm Angular Resolution: 0.1 degrees
• Drive: 4-Wheel Drive
• Control: Scorpia App or Local Webpage
• Connectivity: Wi-Fi
• Arm: 5-Axis Robotic Arm
